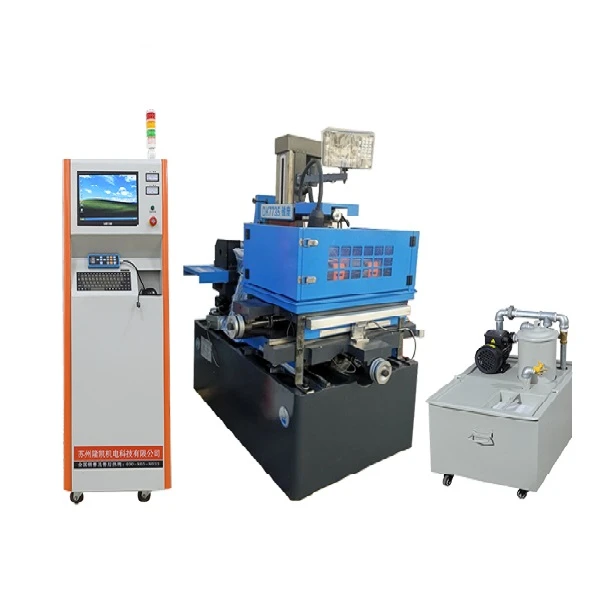

Electronica EDM Wire Cut Machine
High speed wire cutting machines integrates machine electrical appliances, high-frequency power supply, servo control, and graphic programming, achieving high efficiency, high precision, high smoothness, and simple processing control, greatly improving the processing level of fast wire cutting machines
- Product Introduction
Some common questions about electronica edm wire cut machine
High speed wire cutting machines integrates machine electrical appliances, high-frequency power supply, servo control, and graphic programming, achieving high efficiency, high precision, high smoothness, and simple processing control, greatly improving the processing level of fast wire cutting machines. The machine tool adopts flexible reversing with a frequency converter, which can adjust the speed of the wire conveyor drum arbitrarily, thereby improving the smoothness of the workpiece.
Operator panel for electronica edm wire cut machine- what operating system (if any), operating system version?
PC operating system Win7, 32-bit, can be upgraded to Win10 if necessary. But the former version is more stable.
Operator panel of electronica edm wire cut machine- availability of Ethernet
Can be connected to Ethernet.
Operator panel - user documentation, installation, connection and configuration documentation
Have the above listed functions.
Controller (PLC/CNC/NCU) - Is there a separate controller, or is the controller built into the operator panel?
There is a separate control card in the circuit system.
5 Controller - manufacturer, model, version?
Wuxi Bi Audi autocut wire cutting system
6 Controller - what are the interfaces on the controller? (e.g. RS485/RS32, Ethernet, Profibus, MPI, EtherCat)
PCI interface
Controller - technical documents, diagrams - must be up to date and fully meet the requirements of the controller.
Meets the requirements of the controller.
Controller-Tag Mapping
Not have tap mapping function
If the CNC (operator panel) is closed with a password - does the supplier have the password and permissions for administrative access (we do not need these passwords, mainly the supplier has them)
The controller with password lock function
Is there a protocol for exchange, such as MT connect, OPC or other protocols that can be used to receive data from the machine
Not have the protocol for exchange.
Is it possible to provide remote access to the machine for inspection at short notice. RDP/TeamViewer/AnyDesk. Access to similar CNCs can be allowed, for example, in a showroom.
| parameter | High speed threading | Low speed threading |
| Wire speed | 8~12m/s (bidirectional) | 0.2~15m/min (unidirectional) |
| Wire electrode | Molybdenum wire (φ0.18mm), reusable | Copper/galvanized wire (φ0.03~0.3mm), disposable |
| precision accuracy | ±0.015mm | ± 0.001mm (multiple cuts) |
| Surface roughness | Ra 1.6~3.2um | Ra 0.05~0.4um (mirror effect) |
| Conical ability | ≤+6° | 45 ° (UV axis linkage) |
