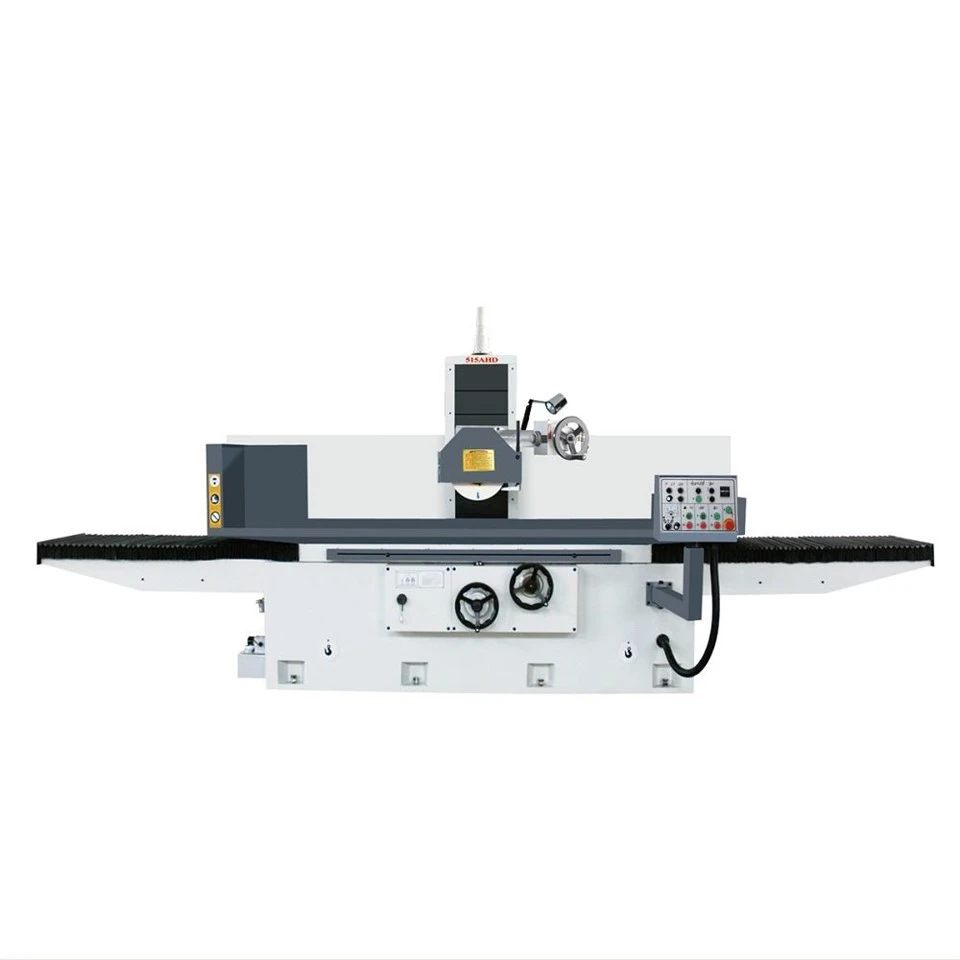

Automatic Surface Grinder

Automatic grinding machine is a CNC equipment used for precision grinding of flat workpieces such as metals, ceramics, and composite materials. By using high-speed rotating grinding wheels or diamond grinding heads, multi-stage processing such as rough grinding, fine grinding, and polishing is carried out on the surface of the workpiece to achieve high flatness and low roughness surface quality

Send Inquiry

Product Introduction

一. main components

1. Rack and worktable: The rigid rack supports the entire machine, and the worktable is equipped with linear guide rails to achieve high-precision movement.
2. Grinding head system: including the main grinding wheel, replaceable diamond or CBN grinding heads, and some models are equipped with automatic tool changing devices.
3. Automatic loading and unloading device: Mechanical arms or conveyor systems achieve automatic loading, positioning, and unloading of workpieces, improving production efficiency.
4. Numerical control and control system: PLC/numerical control system combined with HMI interface, supports multi axis linkage, automatic compensation, tool life monitoring and other functions.
5. Cooling and chip removal system: hydraulic or spray cooling, vacuum cleaning device to keep the processing area clean and prevent the grinding wheel from overheating
.
6. Safety protection: protective cover, emergency stop switch, overload protection, etc., to ensure safe operation

二.Automatic surface grinder is used for processing various precision parts and molds.

● Machine repair workshop and tool workshop: providing high-precision grinding services.

● High precision parts and mold processing in manufacturing: Due to its high precision and efficiency, surface grinders play an important role in these fields.

Surface grinders advantage:

High machining accuracy:

The positioning accuracy and repeatability accuracy of the surface grinder are both high, making it easier to ensure the consistency of the dimensions of a batch of parts.

High degree of automation:

Modern surface grinders are usually equipped with computer control systems, which can achieve high-precision grinding processing and have a high degree of automation, reducing the physical labor intensity of operators.

Efficiency:

By using high-speed rotating grinding wheels and efficient feed mechanisms, excess material on the surface of the workpiece can be quickly removed, improving processing efficiency.

Strong adaptability:

Suitable for grinding various metal and non-metal materials.

Energy saving and space saving:

The design of the new surface grinder focuses on energy conservation and space saving, which can be achieved even with large machine tools.

Stability and reliability:

Due to the horizontal arrangement of the spindle, the workpiece is subjected to uniform force during the machining process, making it less likely to deform, thereby ensuring the accuracy of the machining.

Surface grinders structural composition

A surface grinder typically consists of the following main components:

Bed:

Provides a stable support platform.

Workbench:

Equipped with electromagnetic suction cups or other fixtures, used for clamping workpieces.

Grinding wheel holder:

Install the grinding wheel and drive it to rotate.

Control system:

Including computer control system and other auxiliary systems.

Surface grinders play an important role in the manufacturing industry due to their high precision, versatility, and efficient processing capabilities. Whether it is traditional manual machining or modern CNC machining, surface grinders can provide reliable solutions. With the continuous advancement of technology, its application scope and processing capability are also constantly expanding, making great contributions to the development of industry
