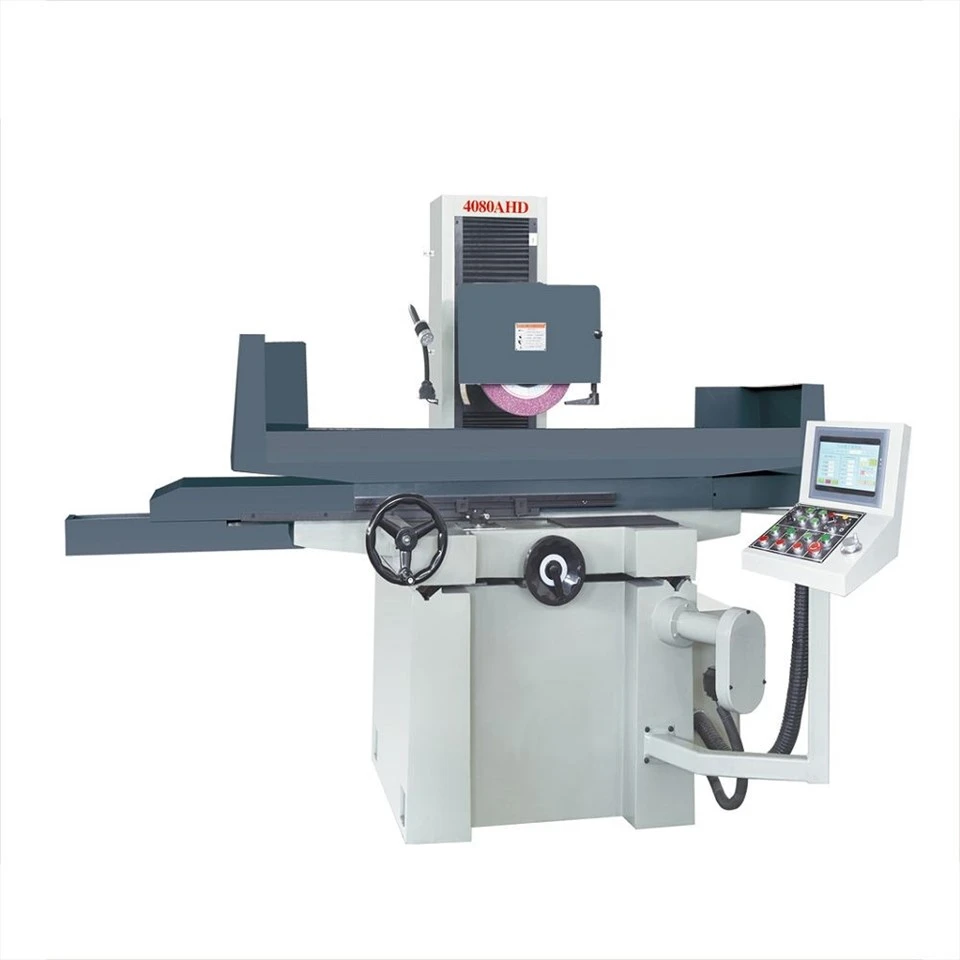

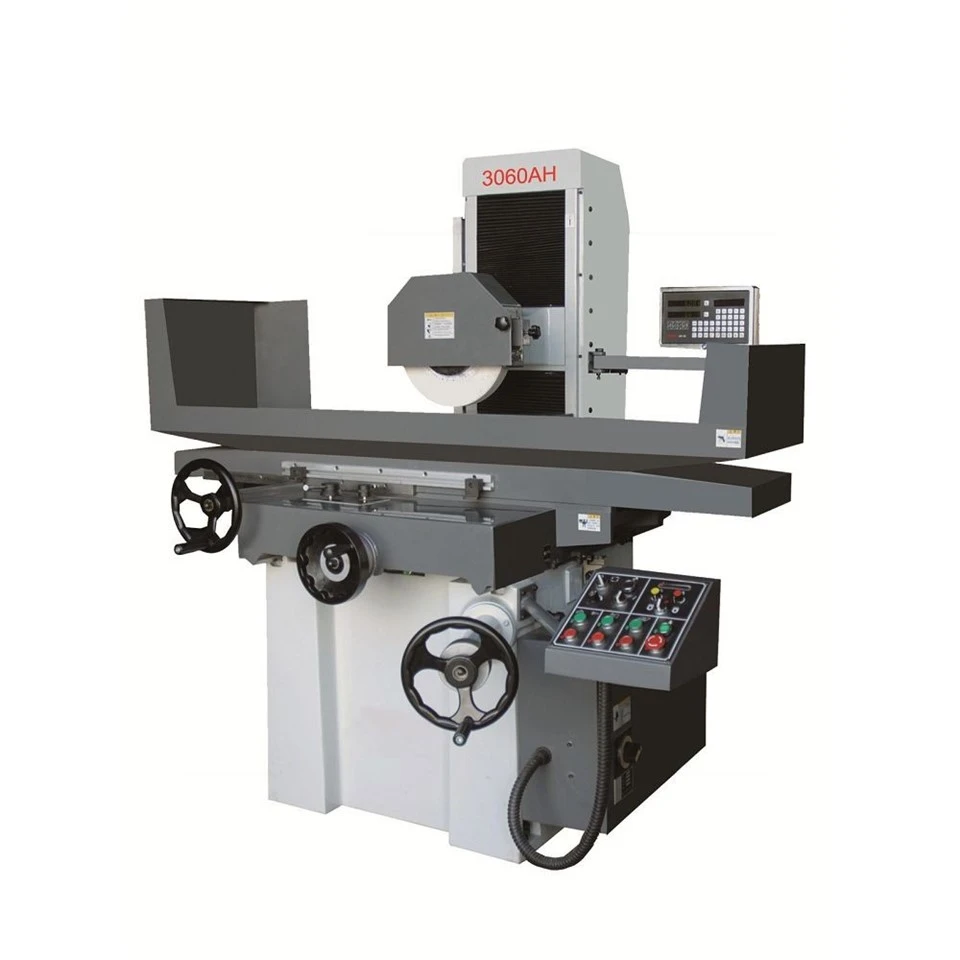

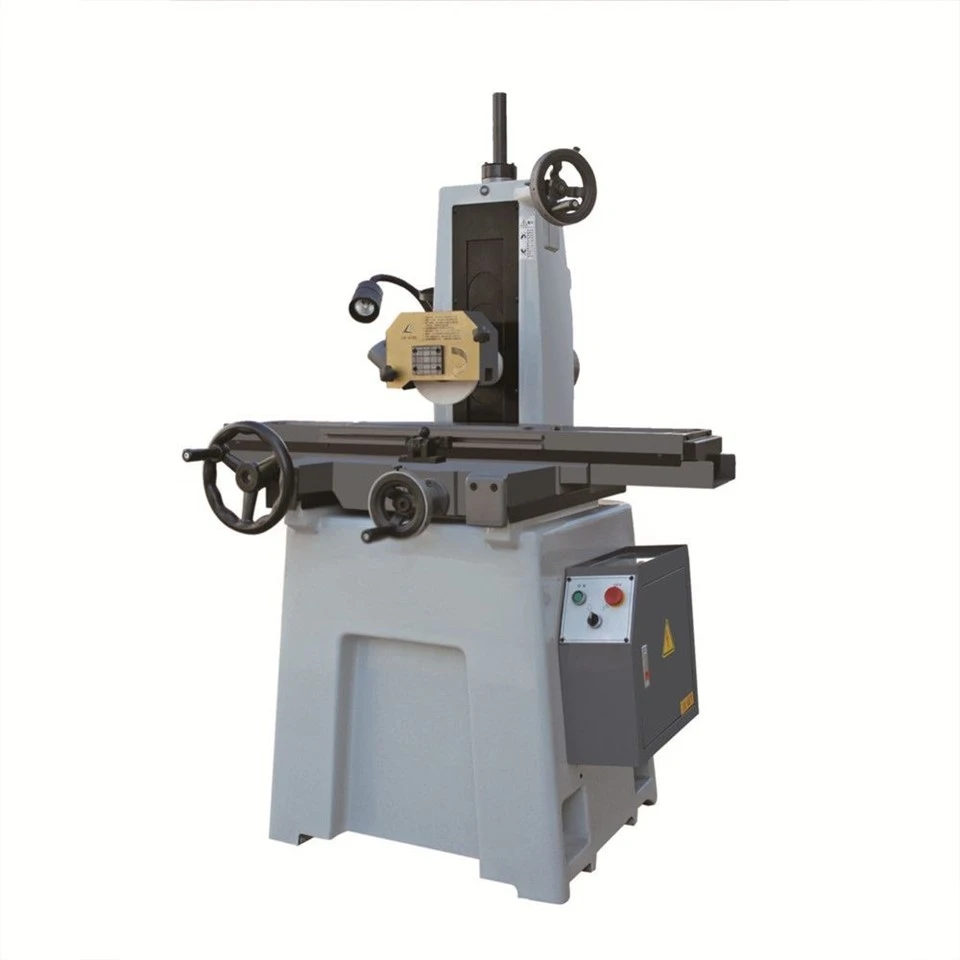

High Quality Surface Grinder
High quality surface grinders can be divided into two types based on the shape of the worktable: rectangular worktable and circular worktable. Rectangular worktable surface grinders are more common, and their main parameters are the width and length of the worktable. It can be used to grind various flat and complex shaped surfaces.
- Product Introduction
一. Core Working Principle
The essence of grinding is a multi-blade micro-edge cutting process. The grinding wheel is composed of countless extremely hard abrasive grains (such as aluminum oxide, silicon carbide, diamond, CBN, etc.) bonded together by a bonding agent. Each abrasive grain acts as a microscopic cutting edge.
High-Speed Rotation: The grinding wheel rotates at high speed (with linear velocities reaching tens or even hundreds of meters per second) driven by the spindle.
Micro-Feed: The workpiece moves or rotates at a relatively low speed and performs precise micro-feeds toward the grinding wheel.
Micro-Edge Cutting: The vast number of randomly distributed abrasive grains on the grinding wheel remove extremely fine chips (typically on the micron level) from the workpiece surface.
Comprehensive Action: The grinding process is actually a combined effect of cutting, plowing, and friction polishing by the abrasive grains, ultimately resulting in a smooth surface.
二. Main Characteristics and Advantages
High Precision: Easily achieves dimensional accuracy of IT6-IT5 grade or even higher.
High Surface Quality: Surface roughness Ra values can reach below 0.1μm, even achieving a mirror-like effect.
Strong Adaptability: Capable of machining high-hardness materials such as quenched steel, cemented carbide, ceramics, and glass, which are difficult to process with traditional cutting tools.
Micro-Cutting: Each grinding operation removes a very small amount of material, making it easy to control.
