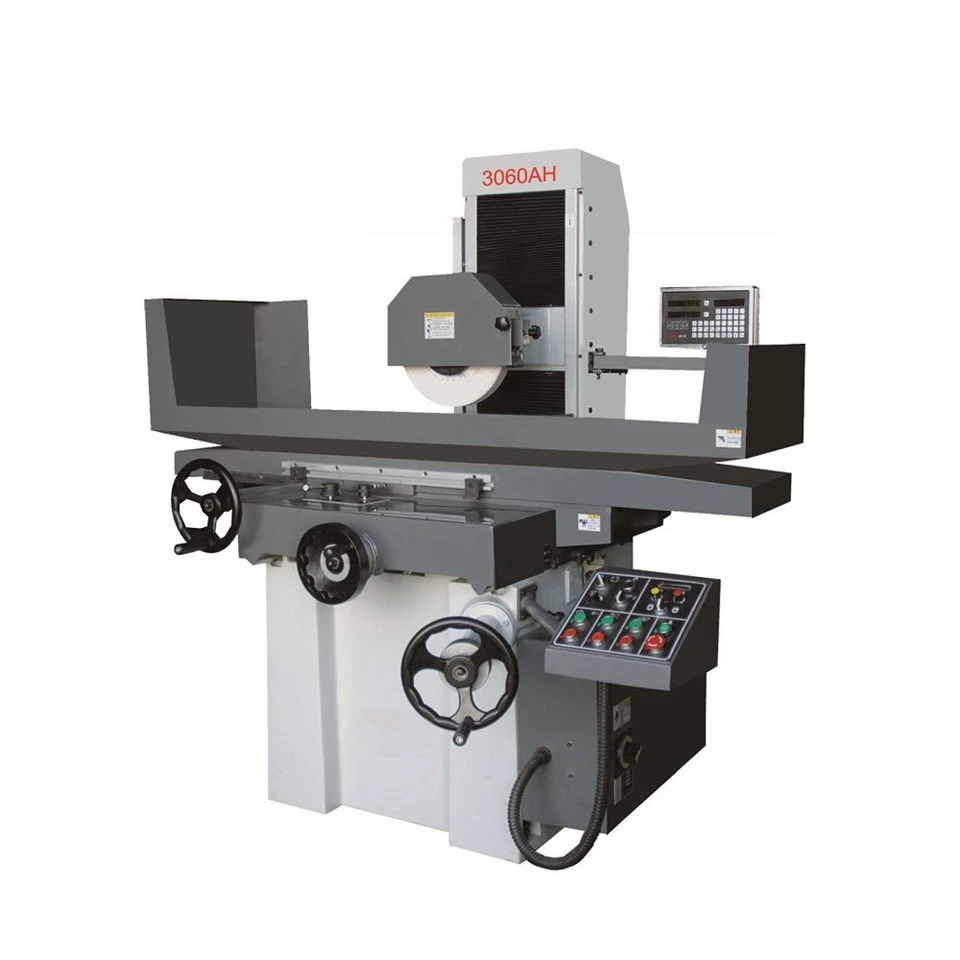

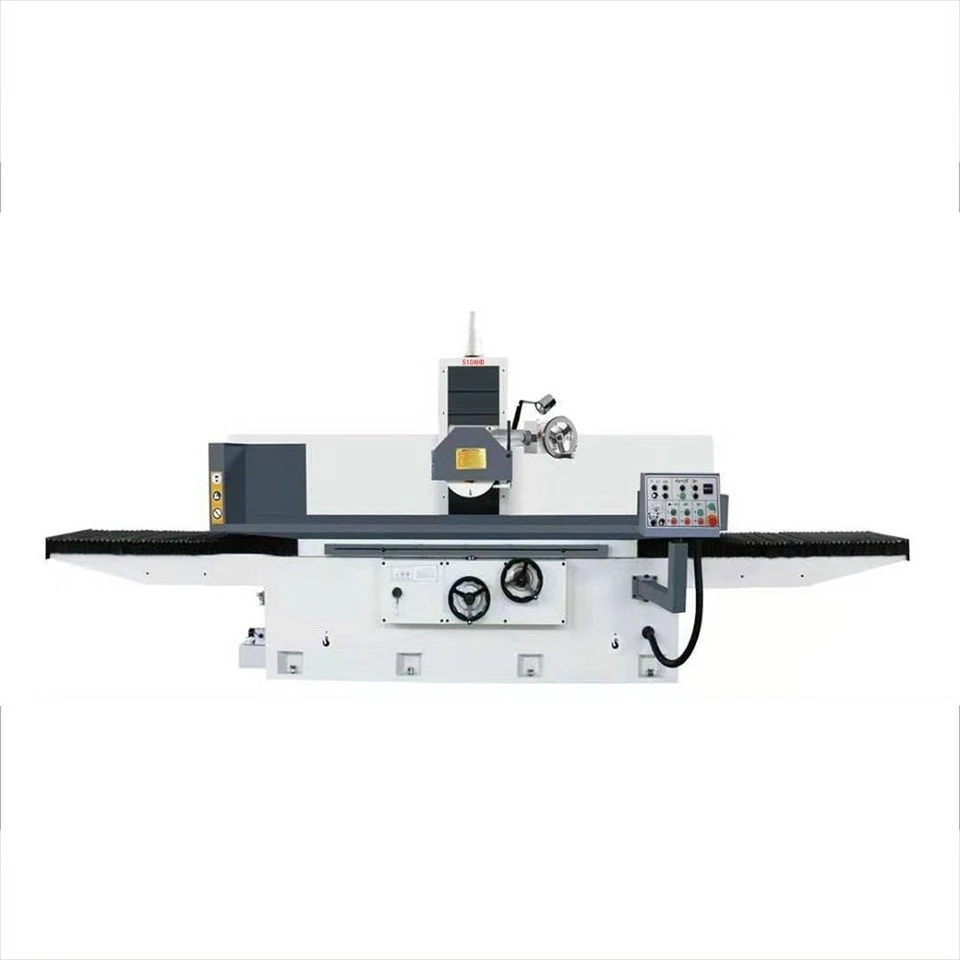

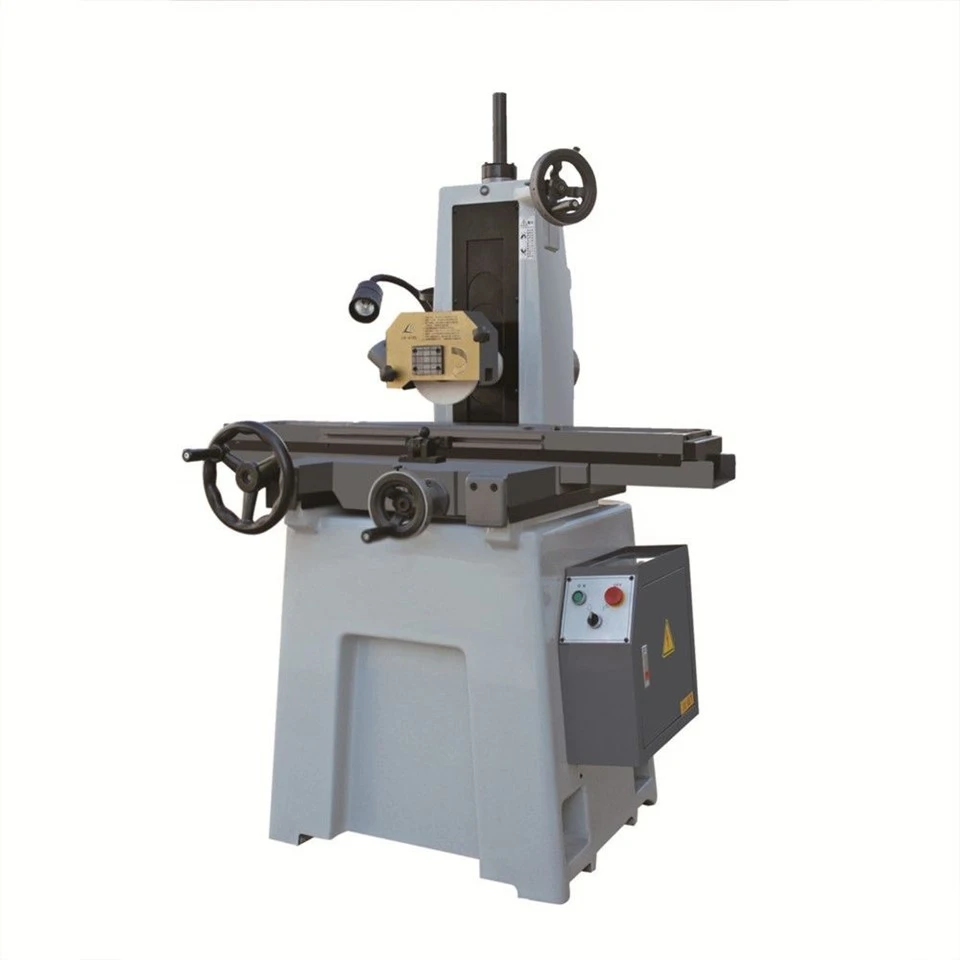

CNC Surface Grinding Machine
CNC surface grinding machine is a specialized machine tool designed for precision grinding of metal surfaces. It combines the accuracy and versatility of computer numerical control (CNC) technology with the grinding capabilities of a surface grinder.
- Product Introduction
Composition of CNC surface grinding machine
CNC surface grinding machine is a specialized machine tool designed for precision grinding of metal surfaces. It combines the accuracy and versatility of computer numerical control (CNC) technology with the grinding capabilities of a surface grinder. The composition of a CNC metal surface grinder typically includes the following key components:
Machine Base and Column:
The machine base provides a stable foundation for the entire grinder.
The column, usually made of cast iron or steel, supports the grinding head and other components.
Table:
The table, made of cast iron or steel, holds the workpiece during grinding.
It can be moved in horizontal and vertical directions to position the workpiece correctly.
Grinding Wheel and Spindle:
The grinding wheel is the main tool for removing material from the workpiece.
The spindle holds the grinding wheel and rotates it at high speeds.
The spindle is usually powered by an electric motor and controlled by the CNC system.
CNC Control System:
The CNC control system is the brain of the machine.
It receives instructions from the operator or a computer program and controls the movement of the table, spindle, and other components.
The CNC system typically includes a computer, software, and various sensors and actuators.
Feed System:
The feed system controls the rate of movement of the table relative to the grinding wheel.
It ensures that the workpiece is fed into the grinding wheel at a consistent rate.
Cooling and Lubrication System:
Grinding generates a lot of heat and friction.
The cooling and lubrication system provides a continuous flow of coolant to the grinding wheel and workpiece to prevent overheating and wear.
Automatic Tool Changer (ATC) (optional):
Some CNC metal surface grinders are equipped with an automatic tool changer.
The ATC allows the machine to switch between different grinding wheels or tools automatically, improving efficiency and reducing downtime.
Safety Devices:
Safety devices such as guards, emergency stops, and interlocks are installed to protect the operator from moving parts and potential hazards.
Auxiliary Equipment:
Depending on the specific application, the CNC metal surface grinder may be equipped with auxiliary equipment such as dust collectors, measuring devices, and workpiece clamping systems.
The composition of CNC surface grinding machine reflects its precision, versatility, and efficiency. Each component is designed to work together seamlessly to produce high-quality finished products. With the continuous advancement of technology, CNC surface grinding machines are becoming increasingly sophisticated and capable of achieving even higher levels of accuracy and productivity.
our advanced CNC Surface Grinding Machine, engineered to deliver unmatched Precision Surface Grinder performance for the most demanding industrial applications. As a fully Automatic Grinding Machine, it combines cutting-edge technology with intelligent automation to revolutionize your production process.
1.Quality Management System Certificate
2.Environmental Management System Certificate
3.Occupational Health And Safety Management System Certificate
