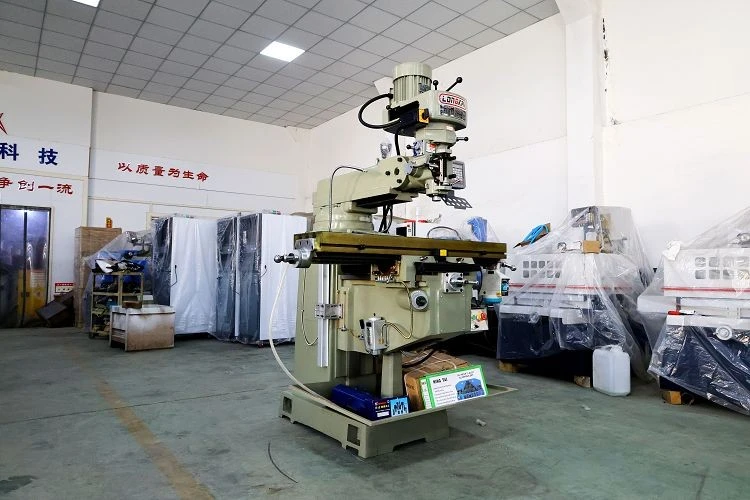

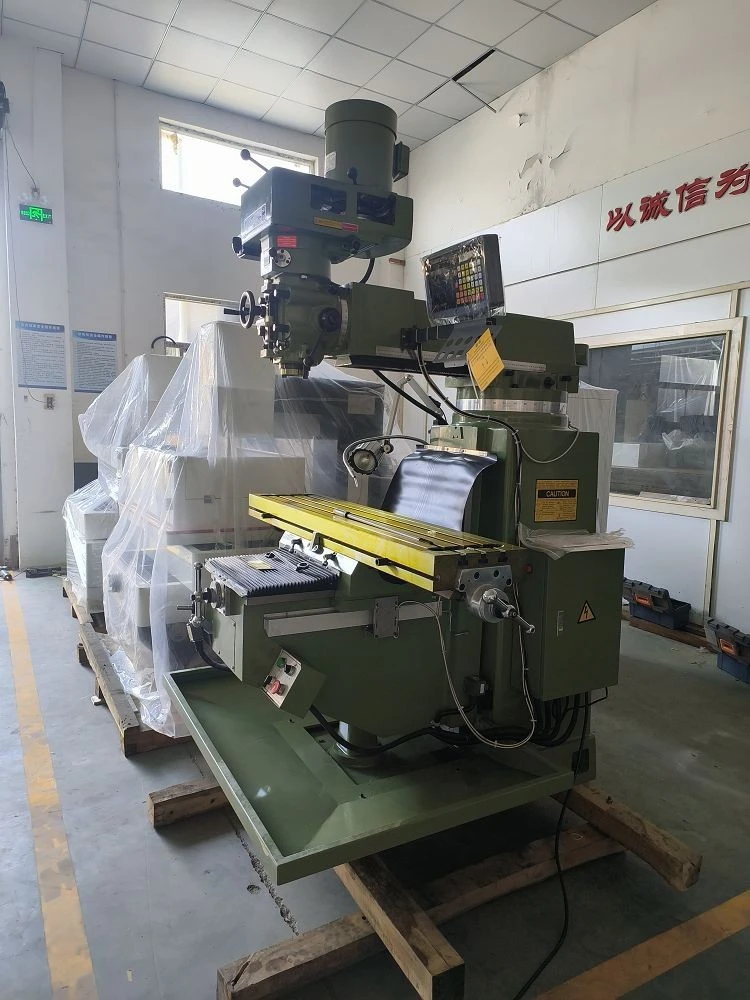

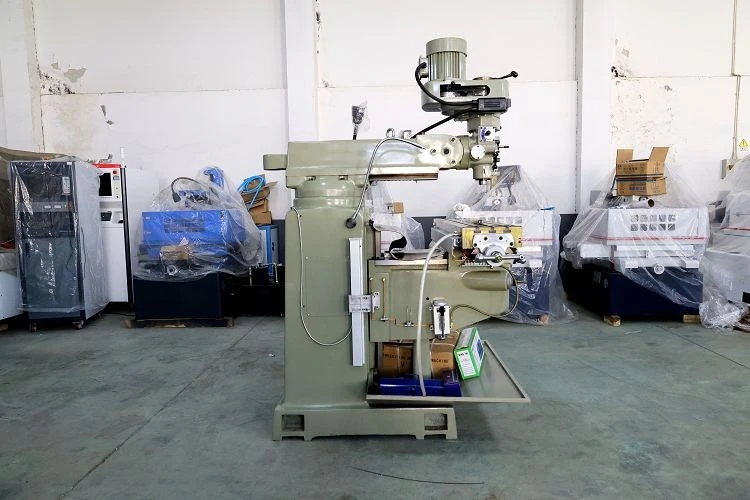

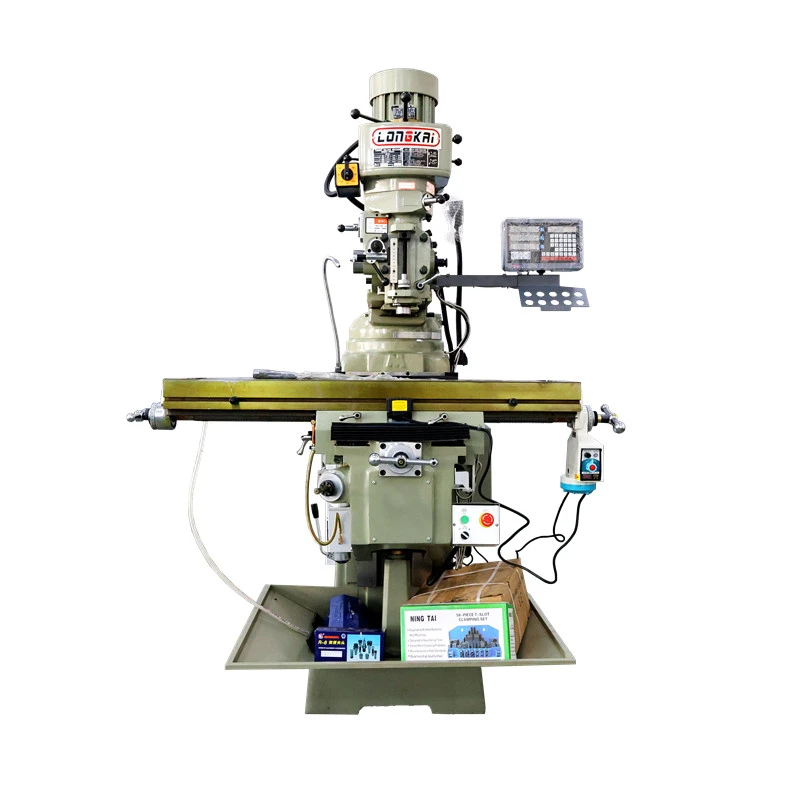

Turret CNC Milling Machine
Before adjustment, it is necessary to first inspect the longitudinal screw and nut of the turret cnc milling machine. If there is damage or deformation of the screw or nut, it needs to be replaced in a timely manner.
- Product Introduction
Turret CNC Milling Machine Product Introduction
1, Overview: What is a turret CNC milling machine?
Rotary turret CNC milling machine, also known as turret milling machine, is a very popular and universal vertical CNC milling machine. Its most prominent feature is a manually or automatically rotatable "turret" above the machine head, which is typically equipped with multiple spindle heads (usually 2 or 4), each of which can accommodate different tools or set different spindle speeds.
This design allows users to quickly switch between different machining settings by rotating the turret during the machining process, without the need for complex automatic tool changing operations like traditional machining centers. It is a cost-effective and efficient machine tool that falls between manual milling machines and full-featured machining centers.
Detailed explanation of the adjustment method for the longitudinal screw clearance of turret cnc milling machine
Ⅰ Check the longitudinal screw and nut
Before adjustment, it is necessary to first inspect the longitudinal screw and nut of the turret cnc milling machine. If there is damage or deformation of the screw or nut, it needs to be replaced in a timely manner.
Ⅱ Adjust the nut
1. Find the longitudinal screw on the bed and remove the nut spring on top.
2. Rotate the hand wheel in reverse until it contacts the nut.
3. Rotate the hand wheel clockwise until the nut starts rolling.
4. Rotate the hand wheel counterclockwise by 3/4 turn. Rotate the hand wheel clockwise by 1/4 turn.
5. Gently rotate the hand cranked wheel by hand and observe if the nut rotates smoothly. If smooth, insert the nut spring back in.
If the nut does not rotate smoothly, repeat steps 2-5 until it is adjusted properly.
Ⅲ Adjust the linear guide rail
1. Move the workbench to the top and bottom and observe the gap on the linear guide rail.
2. Loosen the screws of the linear guide towards the workbench direction.
3. Adjust the position of the linear guide towards the workbench until the gap is consistent with the top and bottom.
4. Open the handwheel of the longitudinal guide rail of the turret cnc milling machine by hand and check whether the guide rail is adjusted correctly without being too tight or loose.
IV. Check the effect after adjustment
After completing the adjustment, it is necessary to check whether the effect is satisfactory. Some simple trial cutting and testing operations can be carried out to observe whether the operation is smooth and decide whether further fine-tuning is needed.
Through the introduction of this article, I believe everyone has understood the method of adjusting the longitudinal screw clearance of turret cnc milling machine. When adjustment is needed, it can be operated according to the steps. During use, it is also necessary to regularly inspect and maintain the equipment to ensure its normal operation and production efficiency.
Our Horizontal Turret Milling Machine delivers unmatched versatility and power for demanding machining operations. Designed for precision and durability, this industrial-grade milling solution features a unique swiveling turret head that enables multi-angle machining without repositioning the workpiece.
Key Features:
360° Rotating Turret Head - Machine complex angles and contours with exceptional precision
Heavy-Duty Construction - Reinforced cast iron body ensures stability during heavy cutting operations
High-Power Spindle System - 5-10 HP motor with variable speed control (40-4000 RPM)
Large Work Table - 10" x 50" surface with precision-ground T-slots for secure clamping
Advanced Cooling System - Maintains optimal temperature during prolonged operation
