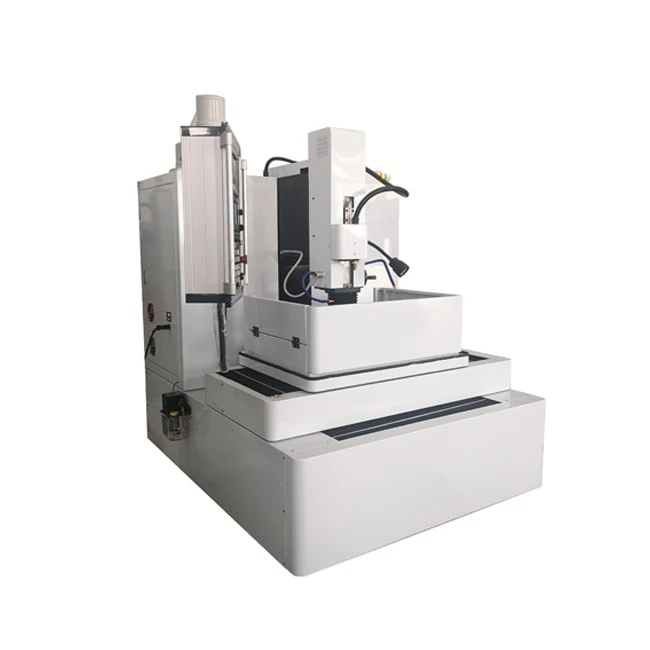

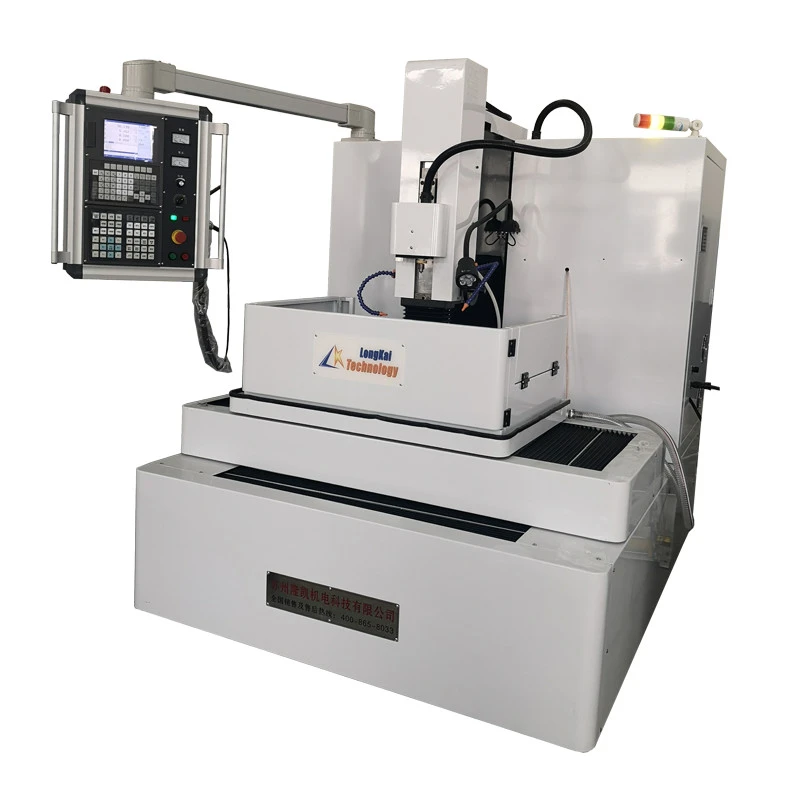

Small Hole EDM Drilling Machine
The small hole edm drilling machine is a kind of electric discharge machining machine tool. It belongs to the electric spark machining as well as the wire cutting machine and the Edm die sinker machine.
- Product Introduction
Product Introduction of Micro hole Electric Spark Drilling Machine
1, Overview and Core Definition
Micro hole electrical discharge drilling machine is a special processing equipment specifically designed for machining extremely small diameter (usually ranging from 0.1mm to 0.3mm), high aspect ratio, and high-precision holes on conductive materials. It is an extension of the standard electric spark drilling machine towards more precise and smaller directions.
Core principle: Based on the principle of electric discharge erosion. Using an extremely slender hollow tube electrode, high-frequency pulse spark discharge is generated between the electrode and the workpiece. At the same time, high-pressure working fluid (deionized water) is sprayed at high speed from the inside of the electrode tube to cool, remove chips, and maintain stable discharge, thereby "non-contact" etching of the material to form micropores.
Market positioning: It is a powerful tool for high-end manufacturing and cutting-edge research and development to solve the difficult problem of micro hole and deep micro hole machining that traditional mechanical drill bits and ordinary EDM drilling machines cannot handle.
Key Features:
CNC Precision: Fully automated ZNC EDM Machine control for depth accuracy (±0.005mm) and repeatability.
High-Speed EDM Drilling: Rapid spark erosion with optimized flushing for deep, small-diameter holes.
Multi-Axis Flexibility: Optional 4th-axis rotary unit for complex angled holes.
Intelligent Flushing System: Prevents debris buildup, ensuring stable long-duration operation.

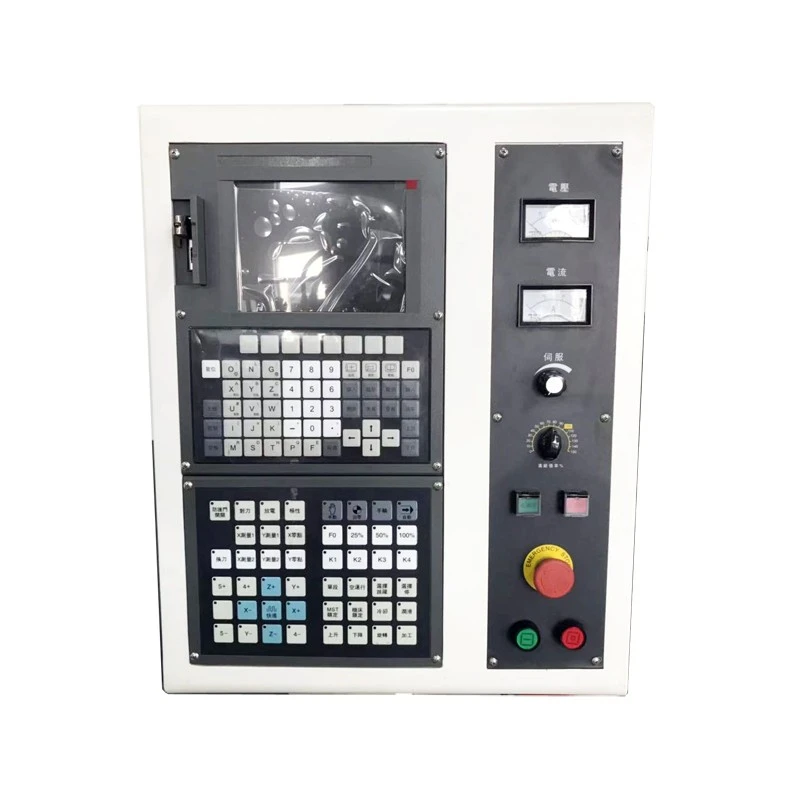

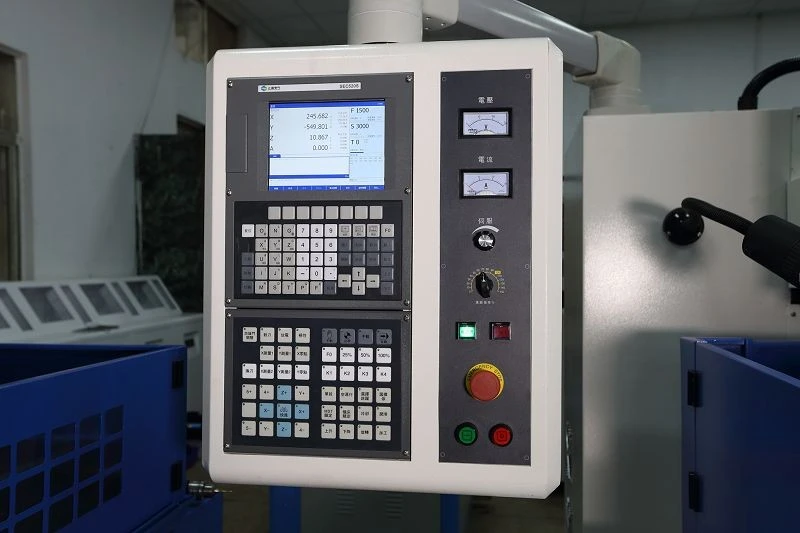

User-Friendly Interface: Touchscreen CNC with pre-programmed settings for common materials.
Why Choose Our EDM Technology?
As a specialist in EDM Machines, we deliver:
Industry-leading hole aspect ratios (20:1 or higher)
Minimal electrode wear & energy-efficient operation
Compliance with aerospace & medical machining standards
