CNC EDM Small Hole Drill
Connect the main power supply before the cnc edm small hole drill operation, and then turn on the air switch. Rotate the "stop" button. At this time, the machine is powered on.
- Product Introduction
CNC Electric Spark Small Hole Drill Product Introduction
1, Overview and Core Definition
CNC electric spark small hole drill, officially known as CNC electric spark small hole machine or electric spark perforating machine. It is a specialized machine tool that combines computer numerical control (CNC) technology and electrical discharge machining (EDM) principles.
Core function: Specializing in efficient and precise machining of small diameter (usually ranging from 0.1mm to 3.0mm) and high aspect ratio holes on conductive materials.
Core principle: Using a continuously rotating hollow tubular electrode, instantaneous high temperature is generated through pulsed spark discharge between the electrode and the workpiece to corrode metal. At the same time, high-pressure working fluid (usually deionized water) is sprayed at high speed from the inside of the electrode tube to cool the discharge area and forcefully discharge the erosion products, thereby achieving continuous and stable drilling operations.
Market positioning: It is the preferred solution for processing small holes on conductive materials with high strength, hardness, toughness, and wear resistance.
Cnc edm small hole drill operation guide
1. Connect the main power supply before the cnc edm small hole drill operation, and then turn on the air switch. Rotate the "stop" button. At this time, the machine is powered on.
01
2. Connect a bucket of tap water, put the two water pipes of the water pump inside, remove the drill chuck, and then turn on the water pump to detect the water flow state. The water flow must be in continuous flow (indicating that there is no air in it and can be processed normally), and then turn off the water pump.
02
3. Take out the proofer (the specification shown in the video is 1.0), find an electrode tube (the specification in the video is 1.0), and then we thread the electrode tube.
03
4. Take out the sealing ring (one end of the sealing ring is two layers and one end is flat), thread the electrode tube into the sealing ring, then into the rotary head, and finally screw in the drill chuck. (it must be clamped to the center of the drill chuck) it can be tightened with a small wrench.
04
5. Put the proofer on the proofer base, tighten the screws with a wrench, press the "down key" to align the electrode tube into the proofer, and then turn off the "down key".
05
6. Test and cut with materials. The corresponding parameter of 1.0 specification is 536 (the corresponding parameter of other specifications shall be selected according to the instructions). Turn on the "water pump", "high frequency", "rotation" and "machining" buttons in turn. Start processing.
7. Adjusting the ammeter and voltmeter can adjust the depth and stability of the cnc edm small hole drill.
Key description
From left to right, High frequency Water pump Processing rotate
Set parameters
From left to right , Pulse width Interveinal Number of power tubes
In cnc edm small hole drill operation different specifications of electrode tubes correspond to different parameters, which can be modified according to the parameter description in the manual.
In case of emergency, shoot the emergency stop directly, and the machine tool will be powered off directly
Product Overview:

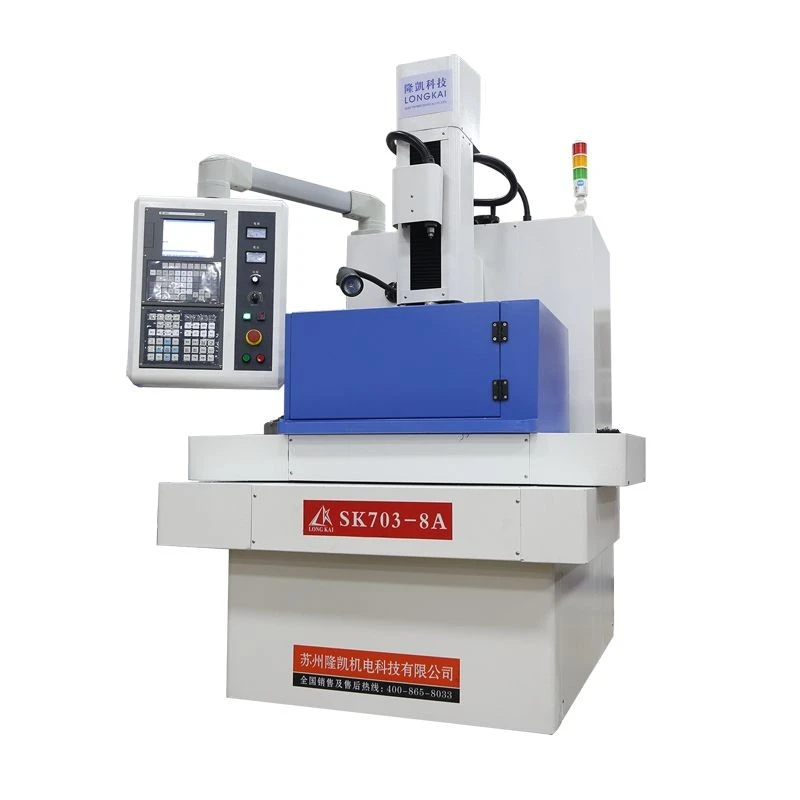

Our Small Hole EDM Drilling Machine combines advanced CNC EDM Machine technology with ultra-precise electrode guidance to create flawless micro-holes (from Ø0.1mm) in hardened metals, carbides, and exotic alloys. As a high-performance EDM Machine, it eliminates mechanical stress, making it ideal for aerospace, medical devices, and precision tooling.
Key Features:
CNC Precision: Fully automated ZNC EDM Machine control for depth accuracy (±0.005mm) and repeatability.
High-Speed EDM Drilling: Rapid spark erosion with optimized flushing for deep, small-diameter holes.
Multi-Axis Flexibility: Optional 4th-axis rotary unit for complex angled holes.
Intelligent Flushing System: Prevents debris buildup, ensuring stable long-duration operation.
User-Friendly Interface: Touchscreen CNC with pre-programmed settings for common materials.
