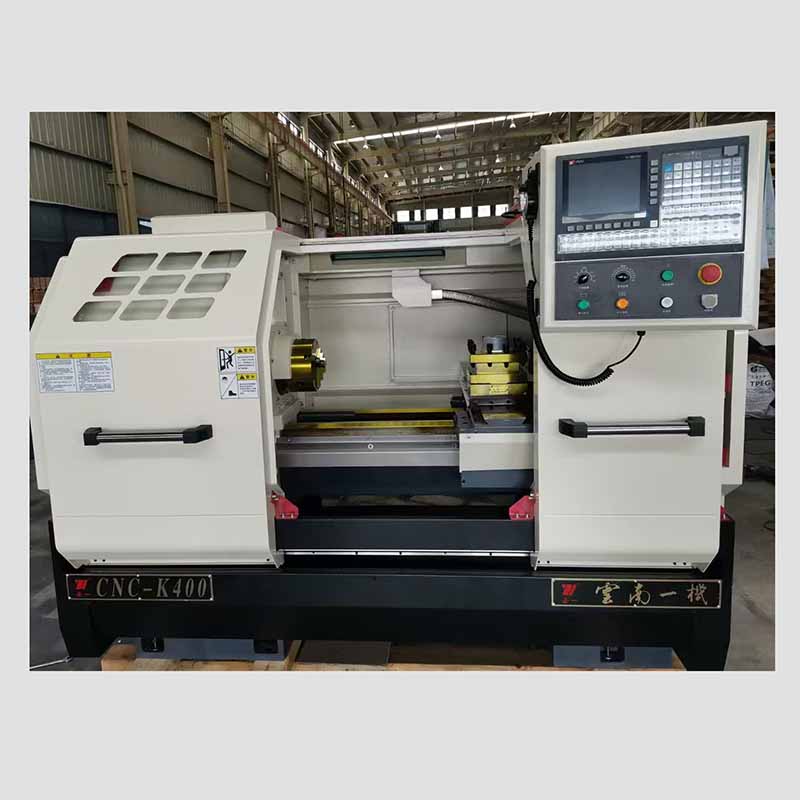

CNC-K400 Flat Bed CNC Lathe Machine

The flat bed CNC lathe adopts a horizontal layout. The main basic parts such as the bed and bed legs are all made of resin sand casting and artificially aged, which has good stability. The bed rail span is 360mm, with better rigidity and greater cutting force. The X/Z axis uses a servo motor and drive, precision ball screw pair and high-rigidity precision composite bearing transmission, and the guide rail pair adopts supersonic quenching (hard rail) plus "plastic bonding" technology to ensure the high precision and stability of the machine tool.

Send Inquiry

Product Introduction

一.Technical features：

CNC-K400 is suitable for high-speed processing of copper, aluminum and other parts requiring high roughness. It is equipped with high-precision spindle special bearings and imported special bearing grease. The entire spindle unit has small thermal deformation and good precision retention.

二.Technical Parameters：

project	name	CNC-K400
Working scope	Maximum rotation diameter on the bed	Φ420mm
	Maximum rotation diameter of the slide plate	Φ260mm
	X-axis (horizontal) maximum travel	295mm long travel
	Z axis (longitudinal) maximum travel	750mm
Bed	Bed rail width	335mm
Bed	The biggest top game	750mm
Spindle	Spindle head model	A2-6
	Spindle inner taper	MT6#
	Spindle aperture	Φ58mm
	Spindle speed	100-3000r/m
	Spindle motor power	5.5KW servo main motor
	Manual chuck size	Three-jaw chuck 200mm
Servo axis	X-axis screw/Z-axis screw (model)	2505/3210
Servo axis	Z-axis motor torque	5Nm/7Nm
Tool holder	form	Four-station tool holder
Tool holder	Square tool handle specifications	25mmx25mm
Tailstock	Tailstock sleeve diameter	Φ65mm
	Tailstock quill travel	150mm
	Tailstock center taper hole	MMTA#
General specifications	Power Specifications (Standard Configuration)	Three-phase 380V/50HZ
Dimensions	2200x1400x1700mm
net weight	1700KG

三.Application fields of flat bed CNC lathes

1. Automobile industry

Flat bed CNC lathes are used in automobile manufacturing to process key parts such as engine cylinders, crankshafts, gears, etc. These parts usually have high precision requirements, and flat bed CNC lathes can achieve high-precision processing through precise CNC system control

2. Aerospace industry

In the aerospace field, flat bed CNC lathes are used to process high-precision parts such as aircraft engines and aircraft structural parts. Its high rigidity and stability ensure the processing accuracy of complex shaped parts.

3. Heavy machinery manufacturing

Flat bed CNC lathes are suitable for the processing of large and heavy workpieces, such as mining equipment, construction machinery, etc. Its flat bed structure provides good support and stability, suitable for processing large diameter and long workpieces.

4. Oil and gas industry

In the oil and gas industry, flat bed CNC lathes are used to process pipe parts such as oil pipes and drill pipes. For example, the ADPT series flat bed pipe thread lathe is specially used for turning oilfield pipe threads, and can efficiently complete the processing tasks of internal and external cylindrical surfaces, internal and external conical surfaces, threads, etc.

5. Mold manufacturing

Flat bed CNC lathes are used to process various precision mold parts in mold manufacturing. Its high precision and versatility enable it to meet the processing needs of complex shapes and high precision requirements.

6. Medical technology

In medical equipment manufacturing, flat bed CNC lathes are used to process high-precision medical components such as surgical instruments, implantable devices, etc. Its high precision and stability ensure the safety and reliability of medical equipment.

7. Education and training

Flat bed CNC lathes are also widely used in vocational schools and technical training as equipment for teaching and practice. For example, the JC-C61 series horizontal flat bed CNC lathe is suitable for use as a teaching machine.

四.Standard configuration：

YJ-980TDi CNC system,

5.5KW main motor (K400),

200 manual three-jaw chuck (speed limit below 2500rpm),

manual tailstock four-station electric tool holder (Changzhou),

automatic lubrication system,

electric cooling system,

lighting system,

fully enclosed protective cover,

Delixi Zhengtai battery control element,

full set of technical information,

random standard parts and tools.
